Fume Cupboard Controllers

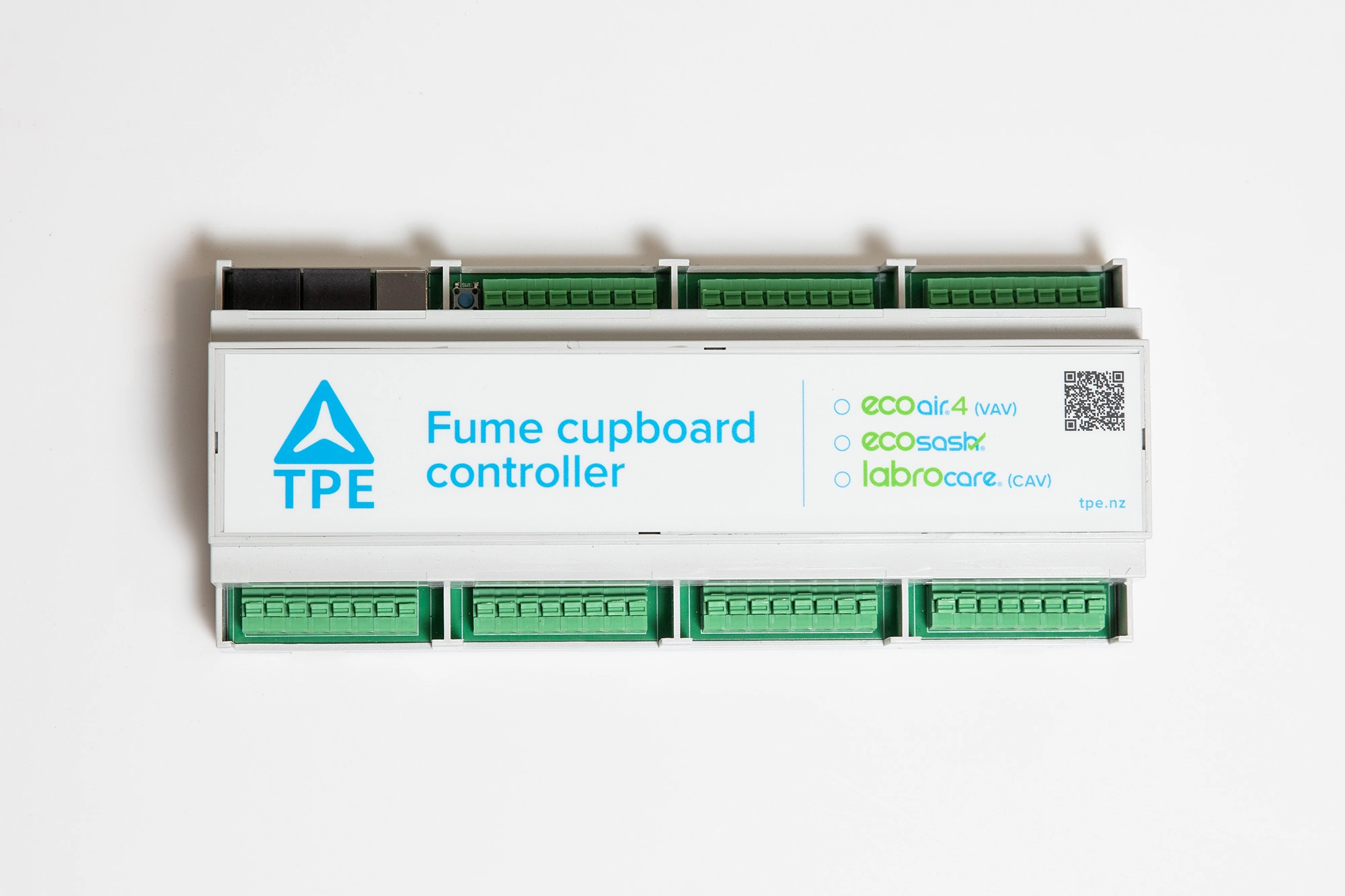

A fully integrated 'all in one' controller system which offers three options: VAV, CAV and Ecosash in the one unit. Now with full BMS integration: Modbus/BACnet MSTP with monitoring and sash control.

Fume cupboard controllers allow the operator to manage their laboratory fume cupboards with ease. Fully compliant with ASNZS2243.8 (2014).

Aircare provides two types of fume cupboard controllers to meet the needs of any modern laboratory. These are the EcoAir IV (VAV) controller, and the Constant Air Volume (CAV) controller.

Variable Air Volume (VAV) Controller

‍

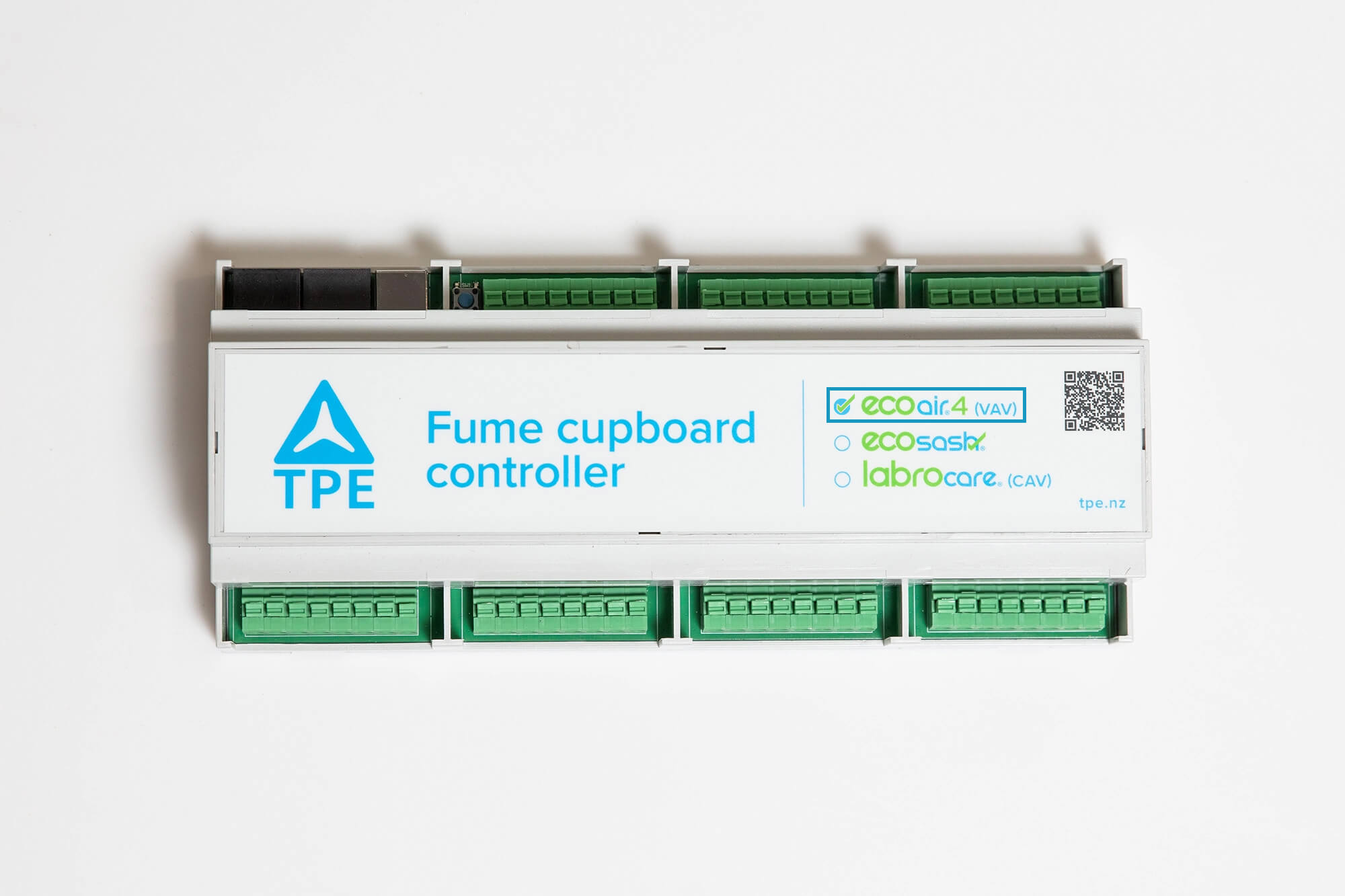

A fume cupboard with an EcoAir IV Controller is a variable air volume (VAV) system. The Controller monitors the sash position and continually adjusts the fan speed to maintain a constant face velocity as the sash height changes. The EcoAir IV Controller thereby saves energy and improves HVAC efficiency by exhausting less conditioned air from the laboratory.

Variable Air Volume (VAV) technology for quiet and economical operation.
BACnet MSTP (RS485) included for full BMS integration, with reporting of operating parameters including occupancy, and ability to open/close sash remotely (with Ecosash).

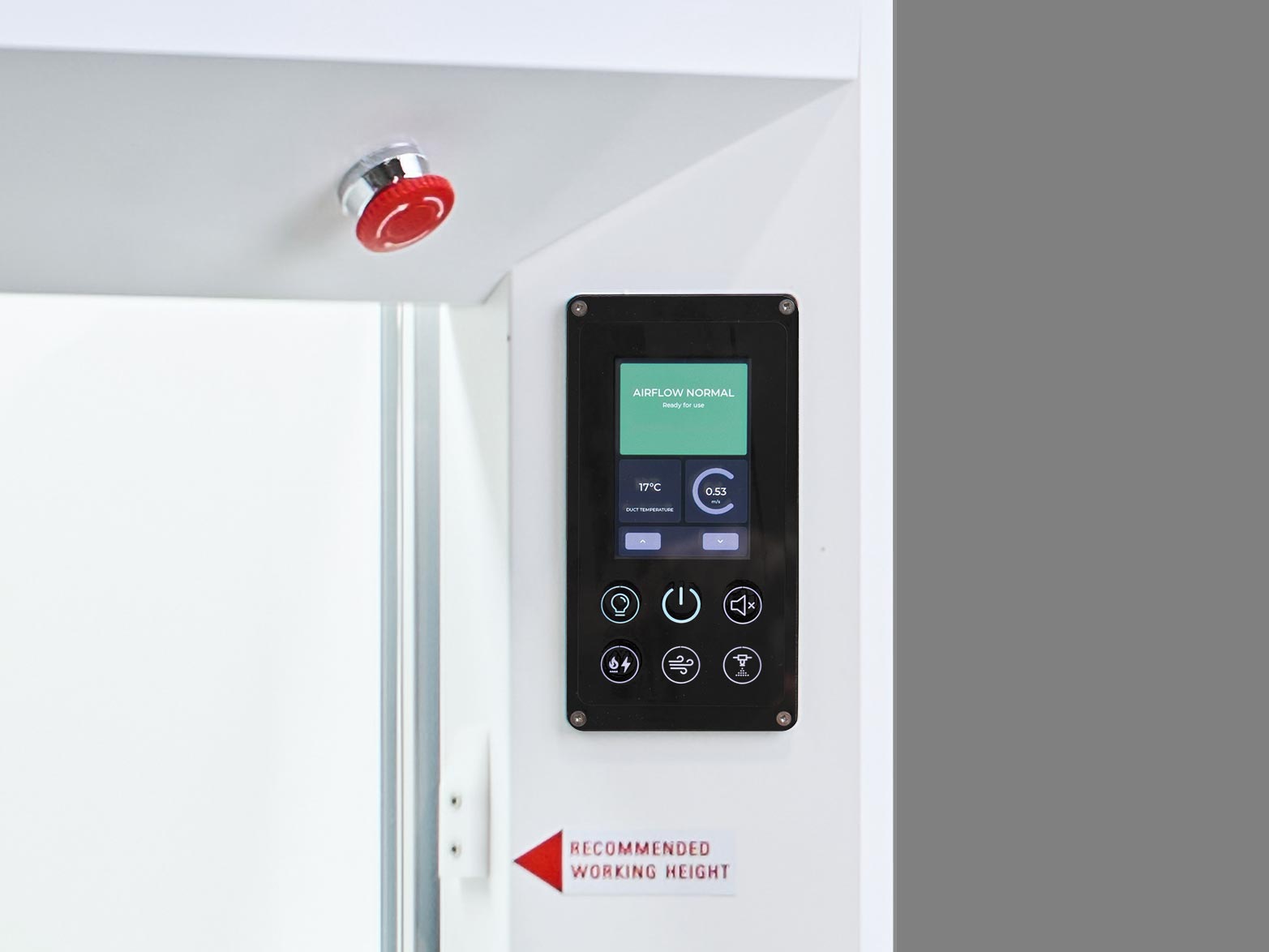

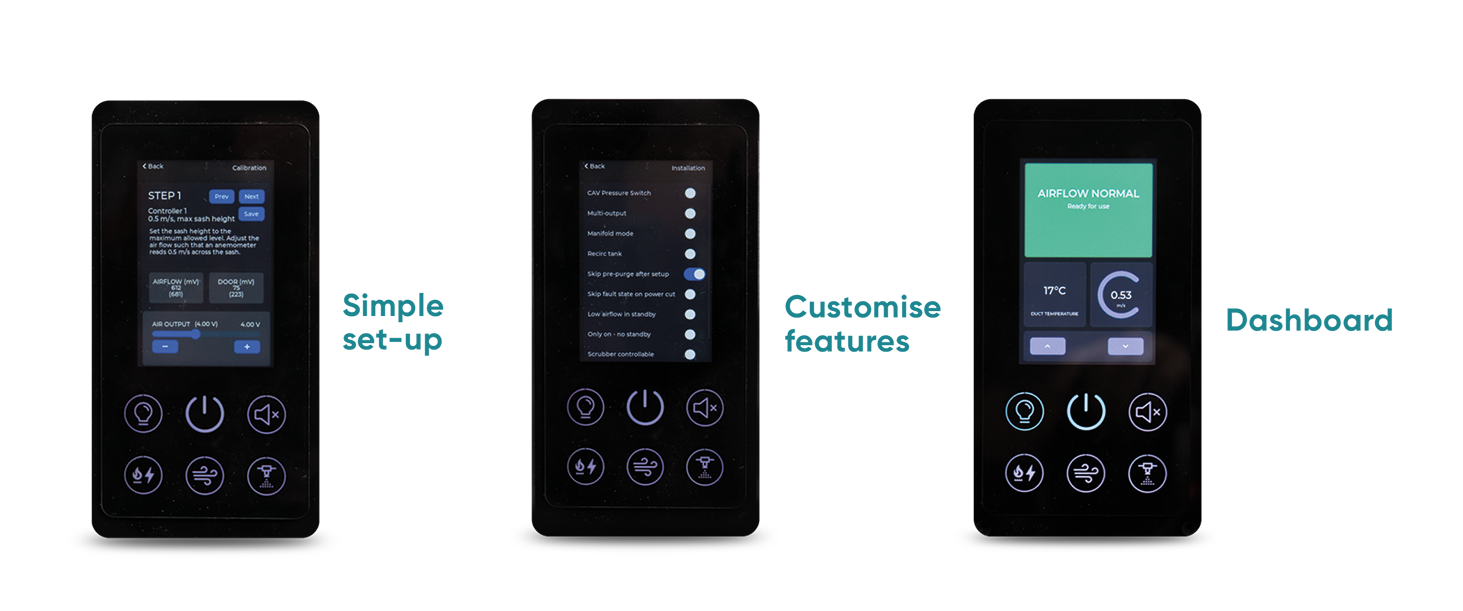

Sleek, chemical resistant glass touch panel with colour screen for simple, easy-to-use operation and setup.
The Ecosash sash closing is fully integrated for minimising loss of conditioned air from the laboratory.
Low flow mode can save energy when the lab is unoccupied (with Ecosash).
Compatible with both damper/manifold and VSD operation.
Fully compliant with AS/NZS 2243.8-2014 and EN 14175.
Cost effective.

View spec sheet

Constant Air Volume (CAV) Controller

The fixed volume (CAV) Controller provides state-of the-art fume cupboard management: A remarkable capability of the fixed volume controller is that it can manage as many as four separate fume cupboards if the four use a single exhaust manifold.

Constant Air Volume (CAV) technology for simple operation.
Available with Ecosash automatic sash closing for improved safety.
BACnet MSTP (RS485) included for full BMS integration, with reporting of operating parameters.
Sleek, chemical resistant glass touch panel with colour screen for simple, easy-to-use operation and setup.
Fully compliant with AS/NZS 2243.8-2014 and EN 14175.
Can control scrubber valve or recirculation tank pump, and spray bar for fume scrubbing systems.
Compatible with both damper/manifold and VSD operation.

View spec sheet

Ecosash® only with PIR sensor

EcoSash is an innovative device that dramatically improves the energy saving capability of a variable air volume (VAV) fume cupboard.

Can be retrofitted to existing VAV fume cupboards without closers.
With the Ecosash system, VAV energy savings are maximised to their full potential.
Pays for itself in energy saving in approximately 18 months.
Improves laboratory safety by minimising time with sash raised.
Sash collision sensing – system monitors for obstacles.
Light beam senor technology – non-contact collision avoidance.
User friendly – easy to install, to configure, and change settings.
PIR sensor panel with adjustable range to allow for use in fume cupboards from 1200mm to 3000mm width.
BACnet MSTP (RS485) included for full BMS integration, with reporting of operating parameters including occupancy, and ability to open/close sash remotely.

View spec sheet

Retrofitting Fume Cupboard Controllers

Both the CAV and VAV controllers represent the latest in modern laboratory equipment. If your laboratory fume cupboards are older, keep in mind that Aircare can retrofit new controllers and bring them up to code.

If you’re unsure about which fume cupboard controller is best for your fume cupboard, please call Aircare to discuss your options.

View spec sheet

Smarter extraction. Safer workspaces.

To find out more about our products, get in touch today.

Aircare, Australian specialists in fume cupboards, extraction fans, and laboratory safety systems since 1989.
