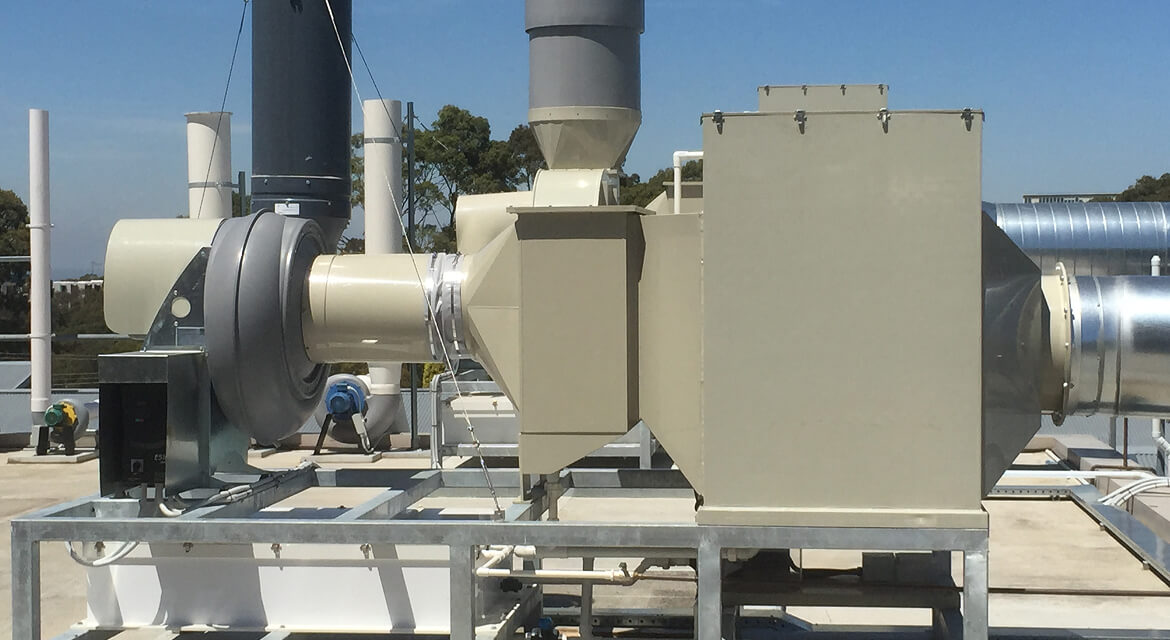

Horizontal Wet Fume Scrubber

Aircare’s horizontal packed bed wet scrubber effectively removes contaminated gases, fumes, and odours from laboratory and industrial airflows. Using a cross-flow design, the scrubbing liquid flows downward while gases pass horizontally through the packing media, ensuring maximum contact and absorption.

The system eliminates up to 95–98% of water-soluble acids and bases, with optional chemical dosing for other contaminants. A spray system and mist eliminator further purify emissions before release into the atmosphere.

Designed for roof or ground installations, this durable and efficient unit is available in multiple sizes to meet specific airflow demands.

Horizontal Fume Scrubber

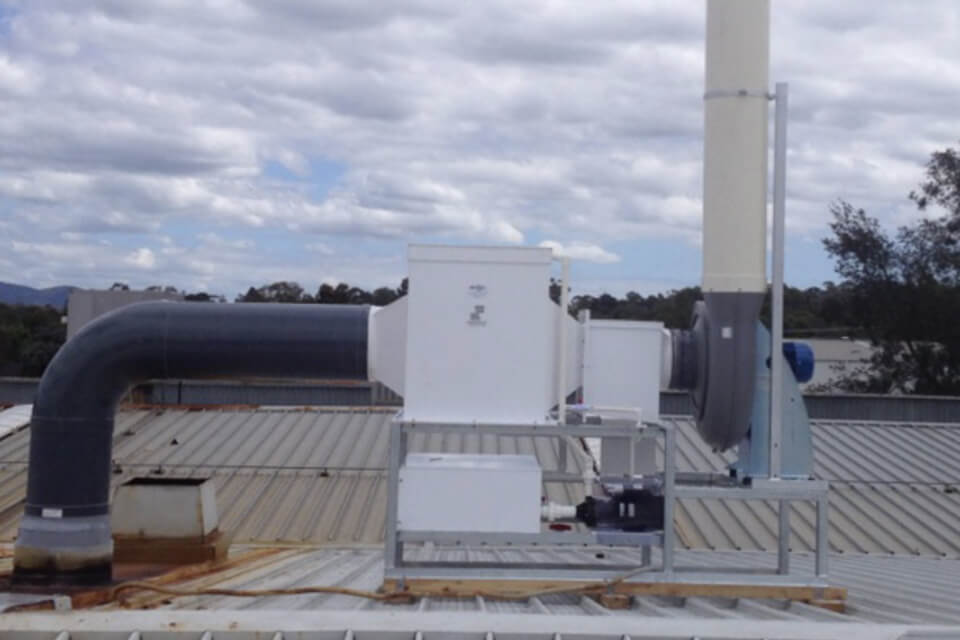

Wet Air Scrubber

Horizontal Fume Scrubber
  • Materials of construction include: uPVC and Polypropylene & Polyethylene
  • Wide range of packing media available
  • Chemical treatment, including oxidation and neutralization, is available to increase absorption of gaseous pollutants. pH control available when applicable
  • Corrosion resistant recirculating pumps for scrubber liquid recirculation
  • Non-plugging spray nozzles for wetting packing in corrosion resistant polypropylene

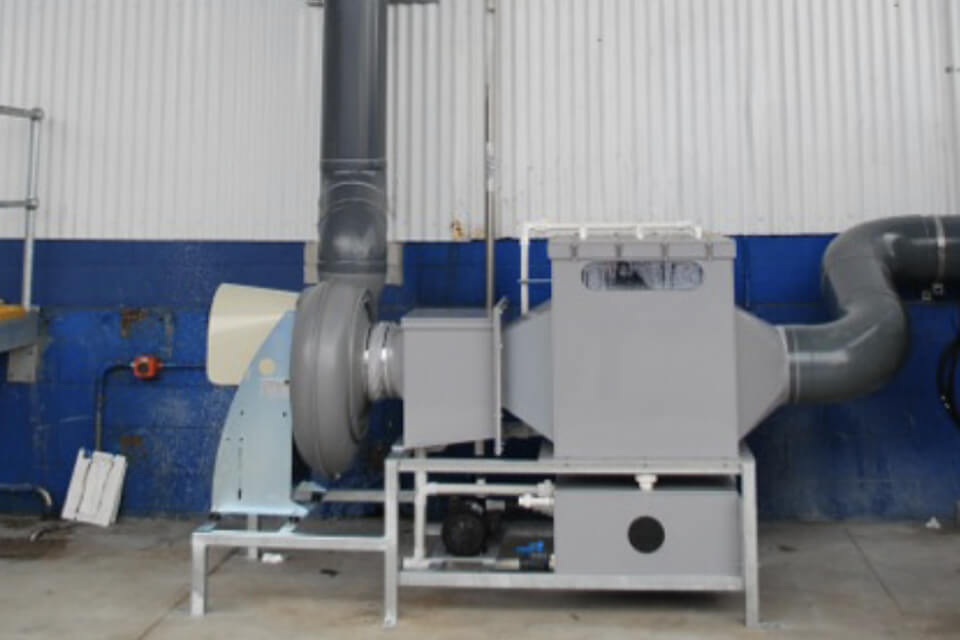

Horizontal Packed Bed Fume Scrubber

This is a cross-flow design with scrubbing liquid flowing vertically downwards while the gas passes horizontally through the packing section.

The Advanced Air® Horizontal Packed Bed Scrubber can be used in all situations including limited facility headroom and is ideal for roof and ground installations. The cross-flow design is less susceptible to fouling for airstreams with the air flow capacity range from 150 l/s – 2000 l/s with larger units available on request.
