Labrocare® Fume Cupboards
Engineered for performance, safety, and compliance, Aircare’s Labrocare range delivers proven fume extraction technology for professional laboratories and specialised environments. Each unit meets AS/NZS 2243.8 (2014) standards and offers reliable Constant Air Volume (CAV) airflow to ensure stable containment and operator protection.
Labrocare® (CAV) Fume Cupboards
Designed for the professional laboratory, Aircare’s Labrocare Fume Cupboard provides proven fume extraction technology, constant air volume (CAV), a wide range of sizes, and optional special features for demanding environments. The Labrocare Fume Cupboard fully complies with AS/NZS 2243.8 (2014) standards.
Constant Air Volume fume cupboards have their exhaust fan set to a fixed speed, calculated to meet the minimum airflow demanded by the relevant standards when the sash is at normal working height. Advanced Air® fume cupboards ensure 0.5 metres/second airflow when the sash is at the recommended working height (normally 500 mm).

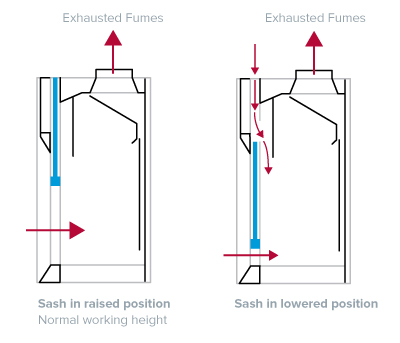

To prevent excessive air velocities through the sash opening when the sash is lowered, Labrocare CAV fume cupboards use an Air Bypass System. At the normal working height, incoming air flows in exclusively through the sash opening. As the sash is lowered, part of the airflow is drawn in through the bypass inlet on top of the fume cupboard.
The bypass prevents excessive velocity at the sash opening by providing a balanced airflow into the fume cupboard. If the sash is opened above normal working height – 730 mm is maximum – airflow at the sash will be reduced to an unsafe level. Labrocare fume cupboards provide a lock at normal working height. It serves as a barrier that must be disabled by the operator to raise the sash above 500 mm; it automatically relocks when the sash is lowered.
Labrocare® Roading Fume Cupboard
The Labrocare ‘R’ fume cupboard has been designed specifically with roading and asphalting contractors in mind. It offers a high level of protection and containment of hazardous chemicals at high temperatures.
Certified to AS/NZS 2243.8 standards, this model features a reinforced work surface, stainless-steel inner carcass, toughened safety-glass sash, and a split sash door system for extra strength and control. CAV or VAV models, custom widths and depths, and a scaffold system are available to suit your workspace.
Download the product spec sheet below or contact us to learn more about the Labrocare Fume Cupboard range and its use in your lab.
Educare® (CAV) Fume Cupboards
Designed especially for secondary academic institutions, the Educare® Fume Cupboard offers an economical and practical choice for any customer wanting a constant air volume (CAV) fume cupboard that fits into a busy teaching environment. The Educare model is built to the same high-quality standards as other Aircare fume cupboards.
Additionally, there are design options offered for the Educare Fume Cupboard that can be useful both to schools and to other customers. This fume cupboard fully complies with AS/NZS 2243.8 (2014) standards.
To find out more about our products, get in touch today.
Aircare, Australian specialists in fume cupboards, extraction fans, and laboratory safety systems since 1989.
